The Nucleus-M is a revolutionary and highly customizable 3-channel wireless lens control system available for rent in Thailand for your video production.
It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.
The wireless range of both the hand unit and hand grips is 1,000 feet.
FOCUS IRIS ZOOM via the FIZ or Left and Right Hand Grips

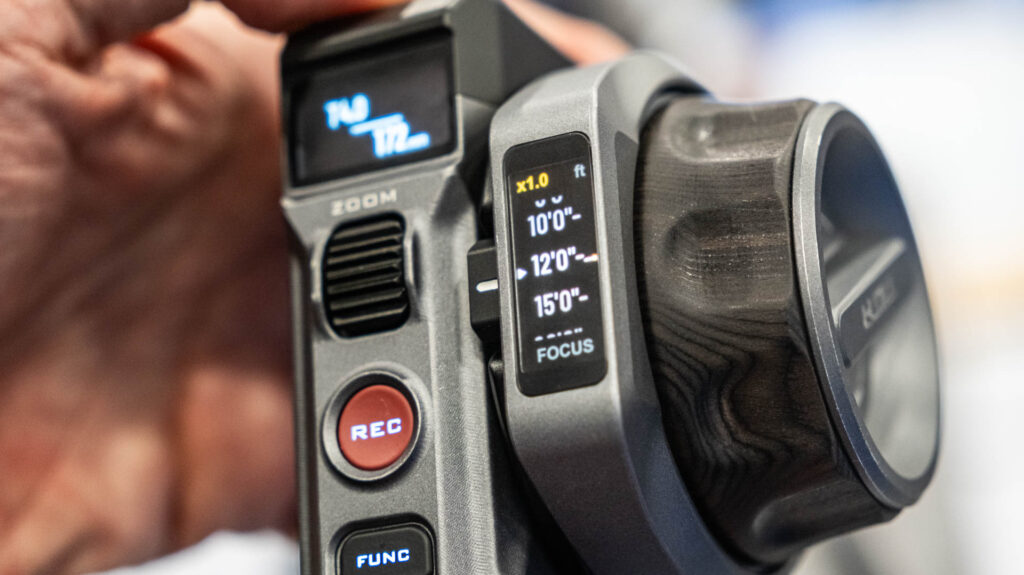

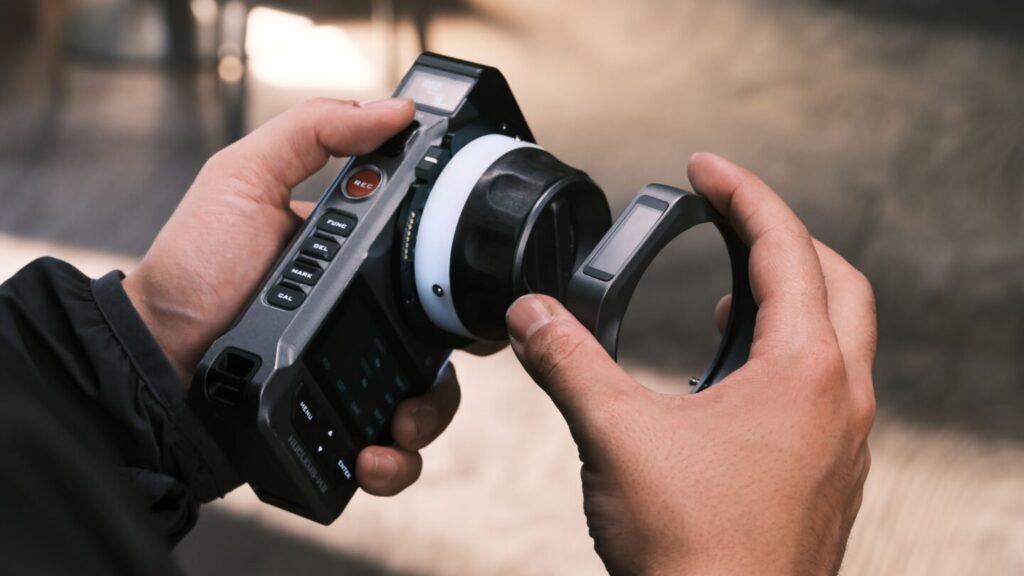

PRECISE FOCUS via Marking Discs, A-B Limits, and Electronic Focus Marking
NO MDR NEEDED Wirelessly Control the Motors Up to 1000 Feet
RUN STOP CAPABLE via the REC Button on the FIZ/Hand Grips and Optional Run Stop Cables
COMPATIBLE with Most Cinema Lenses via the Motor’s 0.8 Gear Pitch or Included Gear Rings
The hand grips can be attached to the included rosette mounts for handheld operation and can also be attached to top bar-based gimbals with the included Nucleus-M Hand Grip to Gimbal Adapters or to ring-based gimbals with the optional Nucleus-M Hand Grip Universal Gimbal Ring Adapters.
Each motor has its own built-in motor drive that communicates directly with the hand unit and hand grips. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time.
Simply set the motors and hand unit/hand grips to the same channel and you will have full control.
The motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.
The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup.
Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses. The torque of the Nucleus-M Motor at 14.8V is 2.5N·m
To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables.
The motors can be powered through a power source that has a voltage output ranging from 7.2V-24V.
The hand unit and hand grips are each powered with two 18650 rechargeable batteries (batteries NOT included). When fully charged, the batteries in the hand grips last up to 2 days, while in the hand unit they last up to 10 hours.
Remote start/stop is possible by plugging a compatible Nucleus-M R/S cable into the open 7-pin port of a motor. This then gives you R/S capabilities through the hand unit and/or the handles.
Description
Tilta Nucleus-M Wireless Focus/Iris/Zoom Controller available for rent in Thailand.
This is an awesome piece of kit for any production – robust and reliable, we’ve put this to work on several of our bigger productions and it’s been flawless.

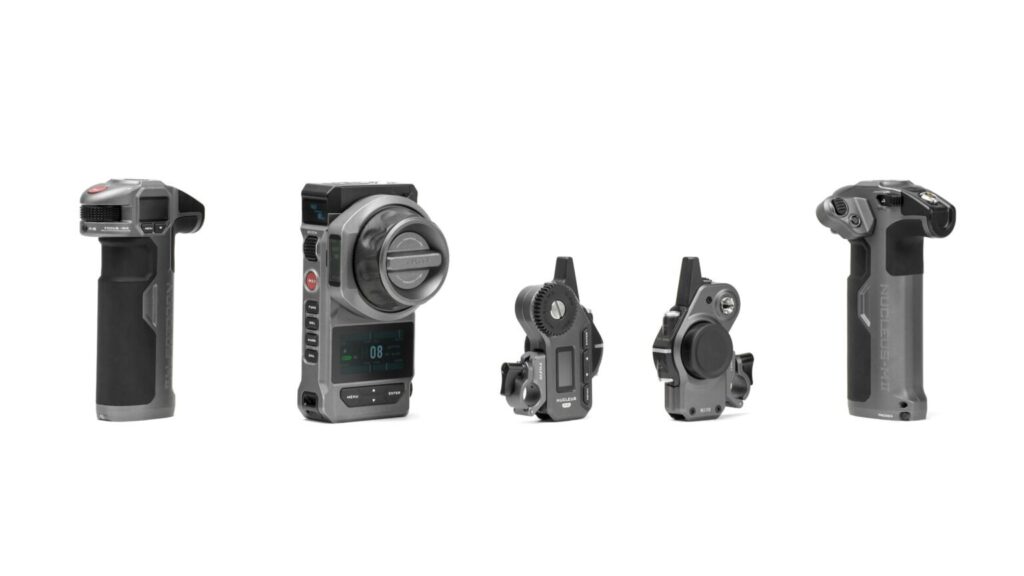

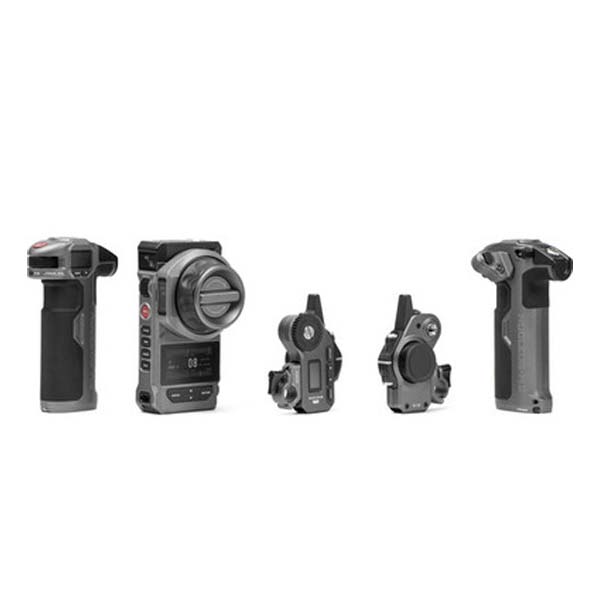

– 1000′ Wireless Range
– Two Lens Drive Motors
– Motors Feature Integrated Receivers
– 0.8 MOD Drive Gears

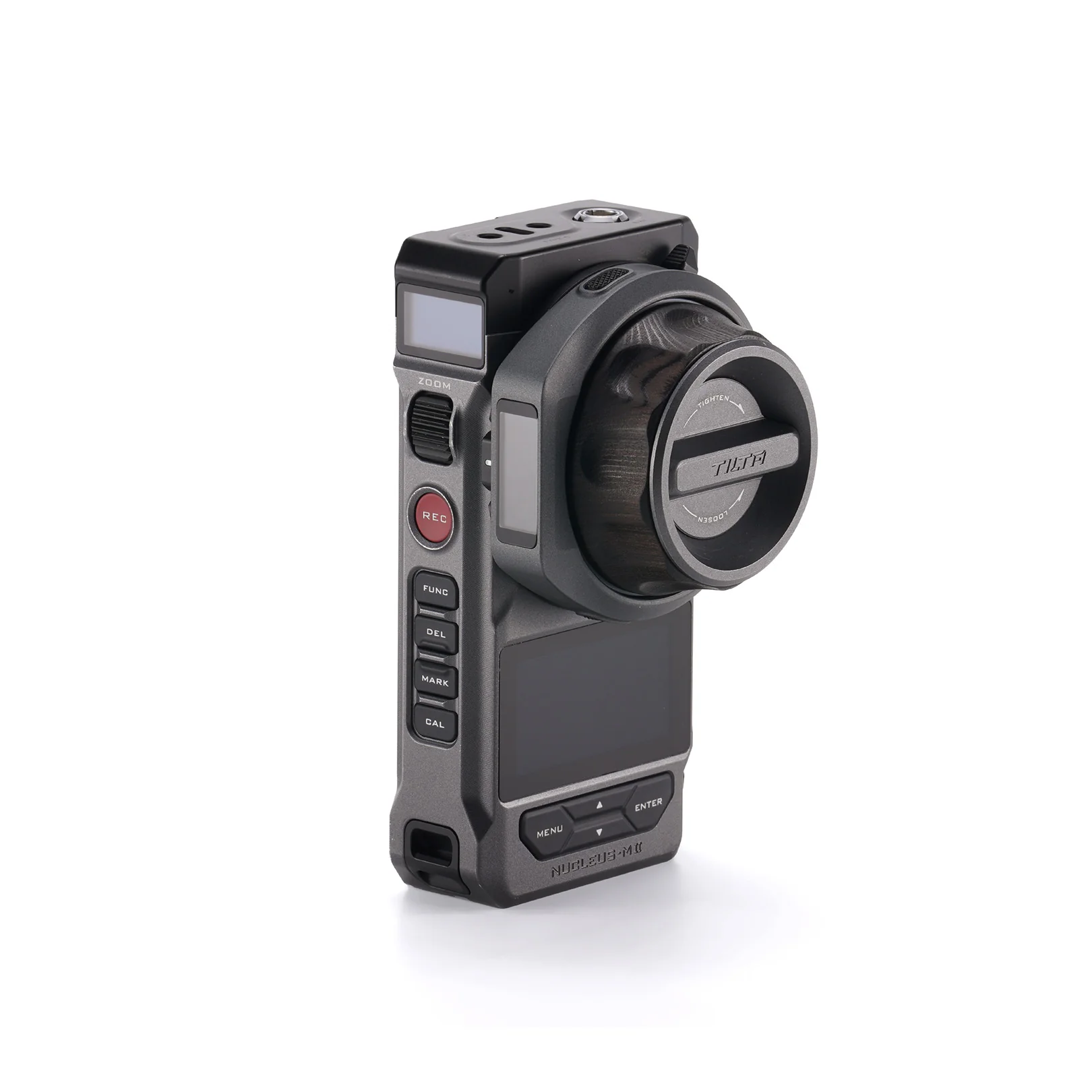

– Focus, Iris, Zoom Hand Unit
– Motors Daisy-Chain for Power
– Right Handgrip with Focus Control
– Left Handgrip with Iris and Zoom Control
– Hard-Shell Waterproof Case Included
Technical Specs
Includes camera control/power cables for ARRI, RED and LANC.
