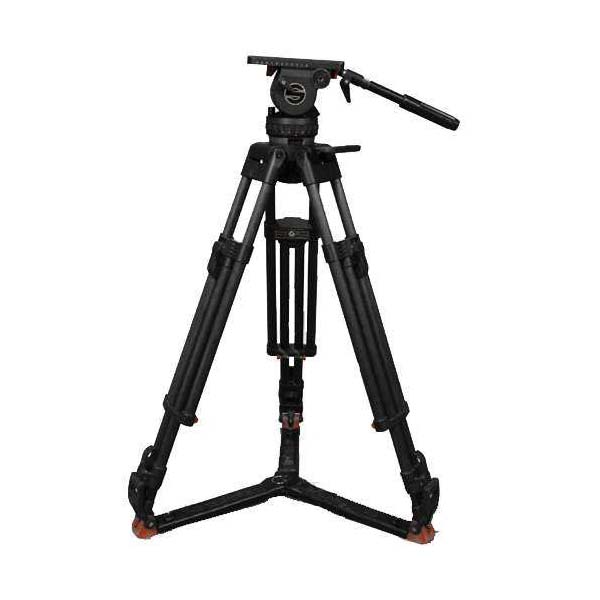

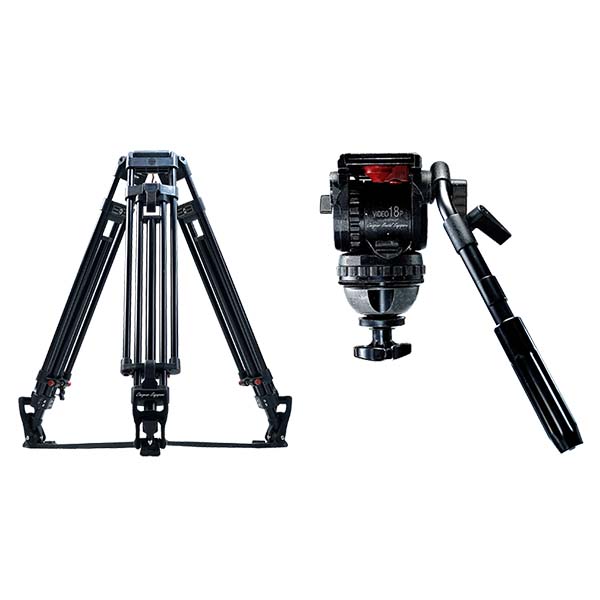

The Sachtler Video 18 SB is a sensitive, fast and robust tripod with fluid head for rent for your video production in Thailand. The key to Sachtlerﾒs successful fluid heads is their step switching. Now our innovative SPEEDBALANCE technology enables even faster and finer counterbalance of your camera system. By reducing the minimum payload, the headsﾒ overall payload range is increased. The Video 18 SB and Video 20 SB feature exchangeable pan bar rosettes and an optional Adapter Viewfinder Extension, allowing them to be retrofitted for film-like shooting together with lightweight HD camcorders and cine accessories.
Includes
- 100 mm / 7+7 damping
- Touch & Goﾮ plate 16
- 1 pan bar
Technical Data
- Weight 3.3 kg / 7.3 lbs
- Payload 2 – 18 kg / 4 – 46 lbs
- Sliding range – plate 120 mm / 4.7 in
- Counterbalance in 10 steps
- Grades of drag 7 each horizontal and vertical + 0
- Tilt range ﾱ90ﾰ
- Temperature range -40ﾰ to +60ﾰ C / -40 to +140ﾰ F
- Camera fitting Touch & Goﾮ Plate 16
- Tripod/Pedestal fitting 100 mm bowl
- Pan bar(s) 2, telescopic, Type Plus
- Level self-illuminating Touch Bubble
- Batteries Level 3 x 625U or LR9
Payload
| C.O.G.* [mm] / C.O.G.* [in] | min. kg / min. lb | max. kg / max. lb |
|---|---|---|
| 75/3″ | 2.1/4.6 | 20.7/45.7 |
| 100/4″ | 1.8/3.9 | 17.7/29.0 |
| 125/5″ | 1.5/3.4 | 15.4/34.1 |
| 150/6″ | 1.4/3.0 | 13.7/30.2 |
| 175/7″ | 1.2/2.7 | 12.3/27.1 |
| 200/8″ | 1.1/2.5 | 11.2/24.6 |
| 250/10″ | 0.9/2.1 | 9.4/20.8 |
