The Desview R7S III is a high-brightness 7-inch on-camera monitor designed for filmmakers who need both extreme visibility and professional connectivity in one unit.
With a powerful 2800 nits brightness, this monitor performs confidently in direct sunlight, making it ideal for outdoor production across Thailand — from Bangkok streets to beach and jungle locations where standard monitors fail.
The 1920×1080 IPS display delivers sharp images with wide 178° viewing angles, while 10-bit color and 100% DCI-P3 coverage provide accurate and rich color reproduction for modern LOG and HDR workflows.
Unlike the standard R7 III, the R7S III adds full 3G-SDI alongside HDMI 2.0, making it suitable for cinema cameras, broadcast setups, and AC workflows. It supports up to DCI 4K60 input and loop output, allowing seamless integration into professional pipelines.
The monitor includes advanced exposure and analysis tools such as waveform, vectorscope, histogram, false color, zebra, peaking, and HDR (PQ/HLG) preview modes. You can switch between SDR and HDR views instantly, ensuring consistent monitoring across different delivery formats.
3D LUT support allows both built-in and custom LUTs via USB-A, making it easy to preview final looks directly on set.

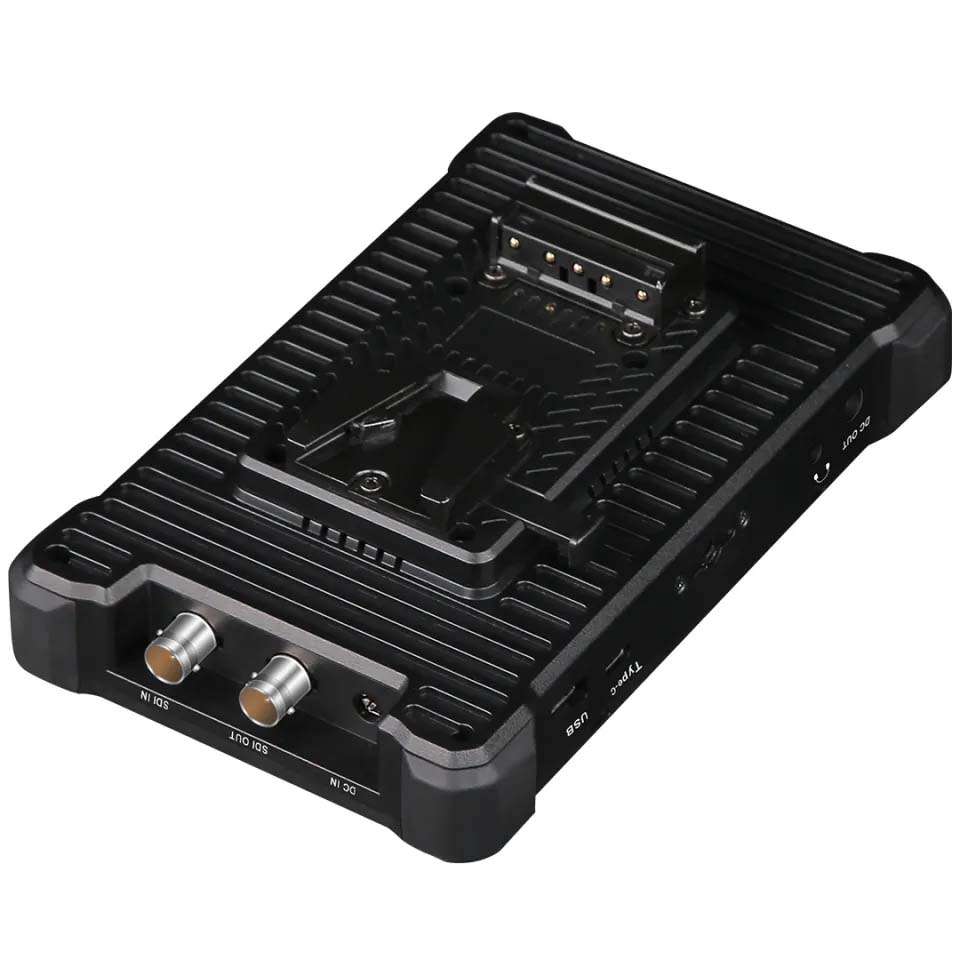

Powering is handled via an integrated V-Mount battery plate, making it ideal for longer shoots and professional rigs. Additional options include USB-C and DC input, plus 8V DC output for powering cameras via dummy battery — simplifying compact builds.
The R7S III is built for real production environments where you need brightness, reliability, and proper SDI workflow without stepping into high-end monitor pricing.
Key Features:
-
Model: Desview R7S III
-
Screen Size: 7” IPS LCD
-
Resolution: 1920 × 1080 (Full HD)
-
Brightness: 2800 nits (daylight visible)
-
Contrast Ratio: 1000:1
-
Color Depth: 10-bit
-
Color Gamut: 100% DCI-P3
-
Viewing Angle: 178°
-
Input/Output: HDMI 2.0 + 3G-SDI (in/out)
-
Max Input: Up to DCI 4K60
-
HDR Support: PQ / HLG
-
Monitoring Tools: Waveform, vectorscope, histogram, false color, zebra, peaking
-
LUT Support: Built-in + custom LUT import (USB-A)
-
Audio: 3.5mm headphone output
-
Control: Touchscreen
-
Power Options: V-Mount / USB-C / DC input
-
Power Output: 8V DC (camera power)
-
Mounting: 1/4”-20 (top/side/bottom)
-
Form Factor: Professional daylight + SDI monitor
Why Rent the Desview R7S III?
This is the “do-it-all” monitor in the Desview lineup.
It combines:
-
R7 III brightness (2800 nits)
-
SDI workflow
-
V-Mount power (pro setups)
In Thailand, where you constantly fight sunlight and need flexible setups, this kind of hybrid monitor saves time and reduces gear complexity.
A strong choice for DPs, camera operators, and ACs who want a single monitor that works in both small and professional setups.
⸻
